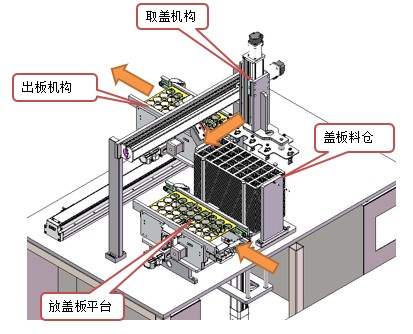

The jig plate with bottom cover, after being pushed out of the material box, to the position where the cover is placed, put the cover plate on the jig plate, and transport to the next station after completion

1. Manually put the material box into the lower layer of the runner, start the equipment, and move the material box to the designated position

2. The material box handling mechanism grabs the material box and rises to the designated position

3. The cover platform grabs the tray to the designated position and fixes the tray

4. The platen conveying mechanism moves to the platen silo to take the platen, and then moves to the cover platform to release the platen

5. The cover platform will transport the material tray to the plate ejection mechanism, and the plate will transport the material plate to the back channel.

6. Repeat the above actions until there is no tray in the material box. The material box transport mechanism rises to send the empty material box to the upper flow channel and then flows out, and then descends to the position of the reclaiming box, and repeats the above action.
